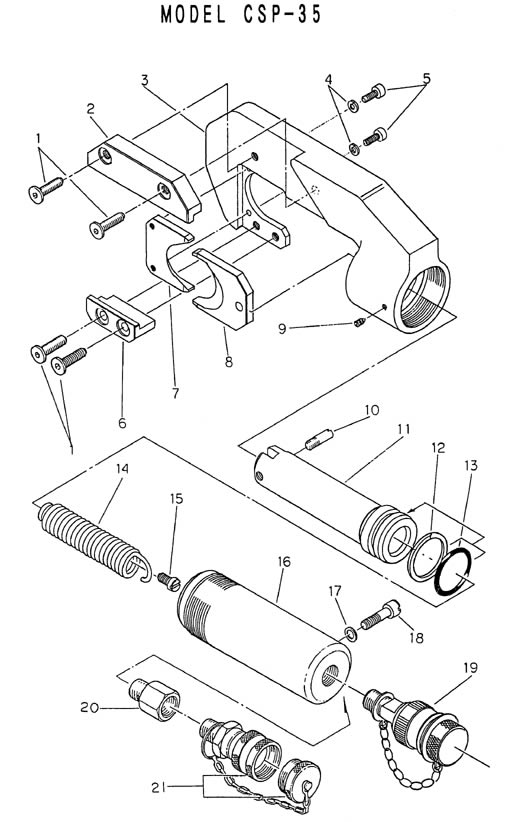

CSP-35 Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 11/01 | C35-011 | M6 x 25 Screw | 4 |
| 11/02 | C35-02 | Blade Guide (2) | 1 |
| 11/03 | C35-03 | Head | 1 |
| 11/04 | 410-07 | M4 Lock Washer | 2 |
| 11/05 | E3-108 | M4 x 12 Screw | 2 |
| 11/06 | C35-04 | Blade Guide (1) | 1 |
| 11/07 | C35-05 | Head Shear | 1 |
| 11/08 | C35-06 | Blade | 1 |
| 11/09 | C35-07 | M4 x 6 Screw (CP) | 1 |
| 11/10 | C35-08 | Blade Screw | 1 |
| 11/11 | C35-09 | Ram | 1 |
| 11/12 | 55D-03 | P-28 Back-Up Ring (BC) | 1 |
| 11/13 | 300-21 | P-28 O-Ring | 1 |
| 11/14 | C35-10 | Spring (578) | 1 |
| 11/15 | 85-19 | Spring Anchor Screw | 1 |
| 11/16 | C35-11 | Cylinder | 1 |
| 11/17 | RF-45 | Copper Gasket | 1 |
| 11/18 | C35-12 | Spring Anchor Screw (2) | 1 |
| 11/19 | 100-24 | Female Coupler IZUMI | 1 |
| 11/20 | P85-80 | Adapter 3/8" PT-M 3/8" NPT-F | 1 |
| 11/21 | P85-81 | Female Coupler PH Type | 1 |
