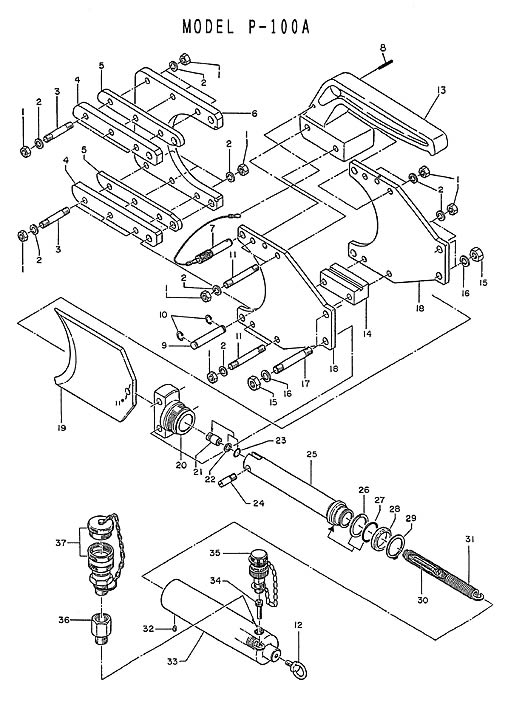

P-100A Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 15/01 | 40-31 | M10 Hex Nut | 20 |
| 15/02 | 40-32 | M10 Lock washer | 20 |
| 15/03 | 100-01 | Stud Bolt (11) | 6 |
| 15/04 | 100-02 | Head Shear Plate | 2 |
| 15/05 | 100-03 | Spacer | 2 |
| 15/06 | 100-04 | Head Shear | 1 |
| 15/07 | 55E-01 | Lock Pin | 1 |
| 15/08 | P55-06 | 3 x 20 Drive Pin | 1 |
| 15/09 | 55-08 | Pin (48) | 1 |
| 15/10 | 55-09 | CE-12 Snap Ring | 2 |
| 15/11 | 55-10 | Stud Bolt (8) | 4 |
| 15/12 | 100-05 | M8 Lifting Bolt | 1 |
| 15/13 | P100A-01 | Carrying Handle | 1 |
| 15/14 | P100A-02 | Guide Piece (B) | 1 |
| 15/15 | 55-14 | M12 Hex Nut | 4 |
| 15/16 | 40-09 | M12 Lock Washer | 4 |
| 15/17 | 55-15 | Stud Bolt (15) | 2 |
| 15/18 | 100A-02 | Support Plate | 2 |
| 15/19 | 100-10 | Blade | 1 |
| 15/20 | 100-11 | Cylinder Head | 1 |
| 15/21 | 100-12 | Spring Anchor Stub | 1 |
| 15/22 | 100-13 | P-10 Back-Up Ring (BC) | 1 |
| 15/23 | 100-14 | P-10 O-Ring (A) | 1 |
| 15/24 | 100-16 | Blade Screw | 1 |
| 15/25 | 100-18 | Ram | 1 |
| 15/26 | 85-22 | P-34 Back-up Ring (BC) | 1 |
| 15/27 | 85-23 | P-34 O-Ring | 1 |
| 15/28 | 100A-03 | Flange | 1 |
| 15/29 | 100A-04 | G-30 Snap Ring | 1 |
| 15/30 | 100-19 | Spring Anchor Screw (A) | 1 |
| 15/31 | 100A-05 | Spring (230) | 1 |
| 15/32 | 85-41 | M6 x 6 Screw (CP) | 1 |
| 15/33 | 100A-06 | Cylinder | 1 |
| 15/34 | 100-23 | M8 x 25 Screw | 1 |
| 15/35 | 100-24 | Female Coupler IZUMI | 1 |
| 15/36 | P85-80 | Adapter 3/8" PT-M 3/8" NPT-F | 1 |
| 15/37 | P85-81 | Female Coupler PH Type | 1 |
