Hydraulic Cutters

P-85 Spares

Hydraulic Cutters

P-85 Spare Parts

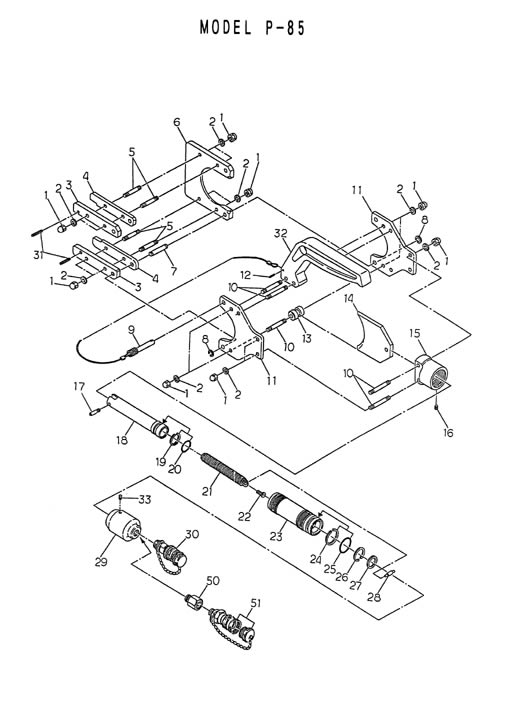

diagram of spares for P-85
Key Part Code Description Qty
14/01 85-01 M8 Cap Nut 18
14/02 40-25 M8 Lock Washer 18
14/03 85-02 Head Shear Plate 2
14/04 85-03 Spacer 2
14/05 85-04 Stud Bolt (3) 4
14/06 85-05 Head Shear 1
14/07 85-06 Pin (44) 1
14/08 75-05 CE-9 Snap Ring 2
14/09 85-07 Lock Pin Ass'y 1
14/10 85-09 Stud Bolt (4) 5
14/11 P85E-01 Support Plate 2
14/12 P55-06 3 x 20 Drive Pin 1
14/13 85-11 Roller 1
14/14 85-12 Blade 1
14/15 P85E-02 Cylinder Head 1
14/16 P55A-02 M5 x 8 Screw (CP) 1
14/17 85-14 Blade Screw 1
14/18 85-15 Ram 1
14/19 85-16 P-24 Back-Up Ring (BC) 1
14/20 85-17 P-24 O-Ring 1
14/21 85-18 Spring (147) 1
14/22 85-19 Spring Anchor Screw 1
14/23 P85-02 Cylinder 1
14/24 85-22 P-34 Back-up Ring (BC) 1
14/25 85-23 P-34 O-Ring 1
14/26 85-24 JO-30 Snap Ring 1
14/27 85-25 Retainer Washer 1
14/28 85-26 Spring Anchor Pin 1
14/29 P85-03 Cylinder Extension 1
14/30 100-24 Female Coupler IZUMI 1
14/31 P85-06 5 x 18 Drive Pin 2
14/32 P85-07 Carrying Handle 1
14/33 55A-24 M4 x 5 Screw (CP) 1
14/50 P85-80 Adapter 3/8" PT-M 3/8" NPT-F 1
14/51 P85-81 Female Coupler PH Type 1
