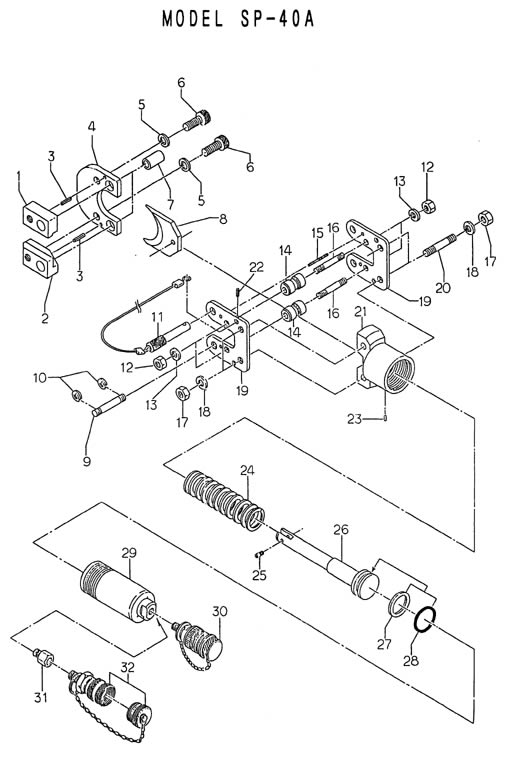

SP-40A Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 12/01 | 40-02 | Guide Piece (A) | 1 |
| 12/02 | 40-04 | Guide Piece (B) | 1 |
| 12/03 | 40-05 | 3 x 12 Drive Pin (AW) | 2 |
| 12/04 | 40-07H | Head Shear (HA) | 1 |
| 12/05 | 40-09 | M12 Lock Washer | 2 |
| 12/06 | 40-11 | M12 x 30 Screw | 2 |
| 12/07 | 40-12 | Bushing | 2 |
| 12/08 | 40-14 | Blade | 1 |
| 12/09 | 40-15 | Pin (43) | 1 |
| 12/10 | 40-16 | CE-10 Snap Ring | 2 |
| 12/11 | 40-17 | Lock Pin Ass'y | 1 |
| 12/12 | 40-24 | M8 Hex Nut | 4 |
| 12/13 | 40-25 | M8 Lock Washer | 4 |
| 12/14 | 40-27 | Roller | 2 |
| 12/15 | 40-28 | 4 x 40 Drive Pin | 1 |
| 12/16 | 40-30 | Stud Bolt (17) | 2 |
| 12/17 | 40-31 | M10 Hex Nut | 4 |
| 12/18 | 40-32 | M10 Lock washer | 4 |
| 12/19 | 40-34 | Support Plate (NS) | 2 |
| 12/20 | 40-36 | Stud Bolt (16) | 2 |
| 12/21 | 40A-01 | Body Head | 1 |
| 12/22 | 40-21 | 2 x 12 Drive Pin (AW) | 1 |
| 12/23 | P55A-02 | M5 x 8 Screw (CP) | 1 |
| 12/24 | 40-38 | Spring (121) | 1 |
| 12/25 | 40-40 | Blade Screw | 1 |
| 12/26 | 40-42 | Ram | 1 |
| 12/27 | 40-43 | P-32 Back-Up Ring (BC) | 1 |
| 12/28 | 40-44 | P-32 O-Ring | 1 |
| 12/29 | P40-01 | Cylinder | 1 |
| 12/30 | 100-24 | Female Coupler IZUMI | 1 |
| 12/31 | P85-80 | Adapter 3/8" PT-M 3/8" NPT-F | 1 |
| 12/32 | P85-81 | Female Coupler PH Type | 1 |
