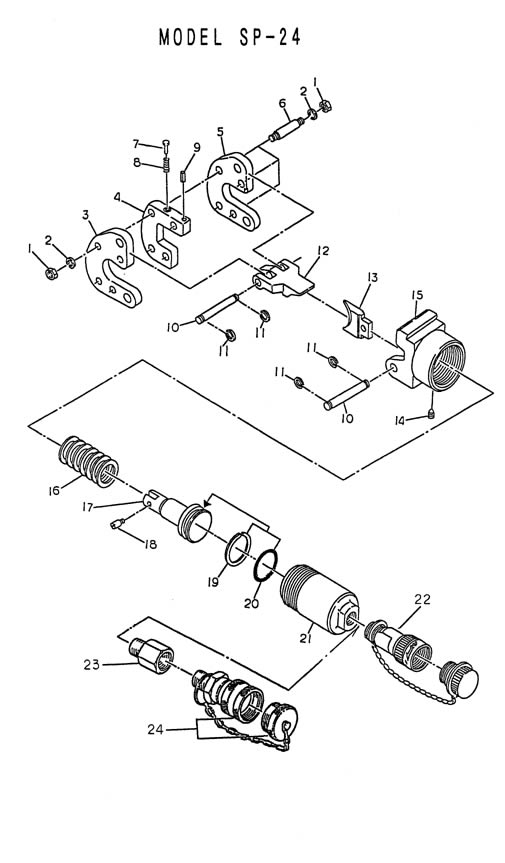

SP-24 Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 9/01 | 40-24 | M8 Hex Nut | 8 |
| 9/02 | 40-25 | M8 Lock Washer | 8 |
| 9/03 | 24-02 | Main Head | 1 |
| 9/04 | 24-03 | Spacer | 1 |
| 9/05 | 24-04 | Head Shear | 1 |
| 9/06 | 24-05 | Stud Bolt (21) | 4 |
| 9/07 | 20-71 | Slide Pin | 1 |
| 9/08 | 85-37 | Spring (144) | 1 |
| 9/09 | 5-09 | 2 x 10 Drive Pin | 1 |
| 9/10 | 24-06 | Pin (142) | 2 |
| 9/11 | 40-16 | CE-10 Snap Ring | 4 |
| 9/12 | 24-07 | Latch | 1 |
| 9/13 | 24-08 | Blade | 1 |
| 9/14 | RD-16 | M5 x 5 Screw (CP) | 1 |
| 9/15 | P24-01 | Cylinder Head | 1 |
| 9/16 | P24-02 | Spring (379) | 1 |
| 9/17 | P24-03 | Ram | 1 |
| 9/18 | 16-19 | Blade Screw | 1 |
| 9/19 | 85-22 | P-34 Back-up Ring (BC) | 1 |
| 9/20 | 85-23 | P-34 O-Ring | 1 |
| 9/21 | P24-04 | Cylinder | 1 |
| 9/22 | 100-24 | Female Coupler IZUMI | 1 |
| 9/23 | P85-80 | Adapter 3/8" PT-M 3/8" NPT-F | 1 |
| 9/24 | P85-81 | Female Coupler PH Type | 1 |
