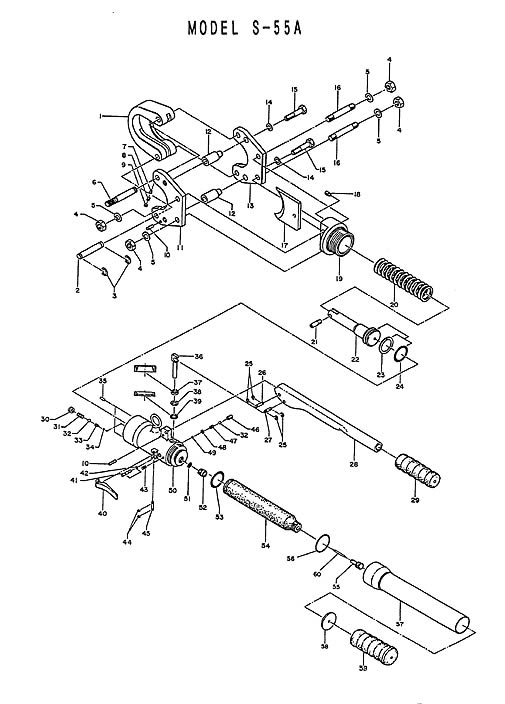

S-55A Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 5/01 | 55A-01 | Head Shear | 1 |
| 5/02 | 55-08 | Pin (48) | 1 |
| 5/03 | 55-09 | CE-12 Snap Ring | 2 |
| 5/04 | 55-14 | M12 Hex Nut | 4 |
| 5/05 | 40-09 | M12 Lock Washer | 4 |
| 5/06 | 55A-02 | Lock Pin | 1 |
| 5/07 | 55A-03 | Stopper Pin | 1 |
| 5/08 | 55A-04 | Spring (140) | 1 |
| 5/09 | 55A-05 | Spring Retainer Screw | 1 |
| 5/10 | 40A-04 | 4 x 16 Dowel Pin (E) | 2 |
| 5/11 | 55A-06 | Support Plate (2) NS | 1 |
| 5/12 | 55A-07 | Spacer | 2 |
| 5/13 | 55A-08 | Support Plate (1) NS | 1 |
| 5/14 | 40-32 | M10 Lock washer | 2 |
| 5/15 | 55A-09 | M10 x 55 Bolt | 2 |
| 5/16 | 55-15 | Stud Bolt (15) | 2 |
| 5/17 | 55A-10 | Blade | 1 |
| 5/18 | 55A-11 | M5 x 10 Screw (DP) | 1 |
| 5/19 | 55A-12 | Body Head | 1 |
| 5/20 | 55-18 | Spring (103) | 1 |
| 5/21 | 32-09 | Blade Screw | 1 |
| 5/22 | 55A-14 | Ram | 1 |
| 5/23 | 55-21 | P-36 Back-Up Ring (BC) | 1 |
| 5/24 | 55-22 | P-36 O-Ring | 1 |
| 5/25 | 40-49 | CE-7 Snap Ring | 4 |
| 5/26 | 40-48 | Pin (27) | 1 |
| 5/27 | 55A-15 | Pin (91) | 1 |
| 5/28 | 55A-16 | Pump Handle | 1 |
| 5/29 | 40-51 | Pump Handle Grip | 1 |
| 5/30 | 55A-17 | Valve Screw (6) | 1 |
| 5/31 | 85-39 | Spring (67) | 1 |
| 5/32 | 16-40 | 9/32" Ball | 2 |
| 5/33 | 85-40 | Spring (66) | 1 |
| 5/34 | 16-49 | 3/16" Ball | 1 |
| 5/35 | 22-05 | 2.5 x 10 Drive pin | 2 |
| 5/36 | 55A-18 | Pump Piston | 1 |
| 5/37 | 40A-05 | VC8 Oil Seal | 1 |
| 5/38 | 85-33 | P-8 Back-Up Ring (BC) | 1 |
| 5/39 | 16-44 | PS-8 Pent Seal | 1 |
| 5/40 | 55A-19 | Release Lever | 1 |
| 5/41 | 55A-20 | Release Valve Stem | 1 |
| 5/42 | 16-36 | P-3 O-Ring (A) | 1 |
| 5/43 | 16-37 | Spring (77) | 1 |
| 5/44 | 16-28 | E-2.5 Snap Ring | 2 |
| 5/45 | 16-27 | Pin (26) | 1 |
| 5/46 | 55-27 | M10 x 14 Screw (FP) | 1 |
| 5/47 | 16-39 | Spring (76) | 1 |
| 5/48 | 16-38 | M3 Flat Washer | 1 |
| 5/49 | 16-26 | 7/32" Ball | 1 |
| 5/50 | 55A-21 | Body | 1 |
| 5/51 | 55A-22 | Filter | 1 |
| 5/52 | 55A-23 | Suction Tube | 1 |
| 5/53 | 16-55 | P-26 O-Ring (A) | 1 |
| 5/54 | 40A-07 | Oil Reservoir | 1 |
| 5/55 | 410-55 | Reservoir Cap | 1 |
| 5/56 | 55A-26 | G-45 O-Ring | 1 |
| 5/57 | 55A-25 | Body Handle | 1 |
| 5/58 | 40-56 | Grip Base | 1 |
| 5/59 | 40-57 | Body Handle Grip | 1 |
| 5/60 | ROB-25 | Magnet | 1 |
