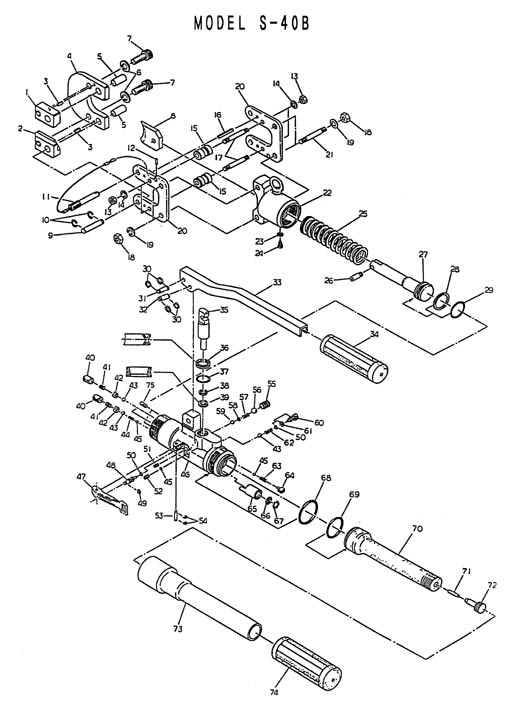

S-40B Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 4/01 | 40-02 | Guide Piece (A) | 1 |
| 4/02 | 40-04 | Guide Piece (B) | 1 |
| 4/03 | 40-05 | 3 x 12 Drive Pin (AW) | 2 |
| 4/04 | 40-07 | Head Shear | 1 |
| 4/05 | 40-12 | Bushing | 2 |
| 4/06 | 40-09 | M12 Lock Washer | 2 |
| 4/07 | 40-11 | M12 x 30 Screw | 2 |
| 4/08 | 40-14 | Blade | 1 |
| 4/09 | 40-15 | Pin (43) | 1 |
| 4/10 | 40-16 | CE-10 Snap Ring | 2 |
| 4/11 | 40-17 | Lock Pin Ass'y | 1 |
| 4/12 | 40-21 | 2 x 12 Drive Pin (AW) | 1 |
| 4/13 | 40-24 | M8 Hex Nut | 4 |
| 4/14 | 40-25 | M8 Lock Washer | 4 |
| 4/15 | 40-27 | Roller | 2 |
| 4/16 | 40-28 | 4 x 40 Drive Pin | 1 |
| 4/17 | 40-30 | Stud Bolt (17) | 2 |
| 4/18 | 40-31 | M10 Hex Nut | 4 |
| 4/19 | 40-32 | M10 Lock washer | 4 |
| 4/20 | 40-34 | Support Plate (NS) | 2 |
| 4/21 | 40-36 | Stud Bolt (16) | 2 |
| 4/22 | 40A-01 | Body Head | 1 |
| 4/23 | 410-09 | M5 Lock Washer | 1 |
| 4/24 | 40A-02 | Stopper Screw | 1 |
| 4/25 | 40-38 | Spring (121) | 1 |
| 4/26 | 40-40 | Blade Screw | 1 |
| 4/27 | 40-42 | Ram | 1 |
| 4/28 | 40-43 | P-32 Back-Up Ring (BC) | 1 |
| 4/29 | 40-44 | P-32 O-Ring | 1 |
| 4/30 | 40-49 | CE-7 Snap Ring | 4 |
| 4/31 | C60-06 | Pin (158) | 1 |
| 4/32 | C60-07 | Pin (157) | 1 |
| 4/33 | 40B-01 | Pump Handle | 1 |
| 4/34 | 51-25 | Pump Handle Grip | 1 |
| 4/35 | C60-10 | Pump Piston | 1 |
| 4/36 | C60-11 | P-16 X-Ring | 1 |
| 4/37 | C60-12 | P-16 O-Ring (CP) | 1 |
| 4/38 | 85-33 | P-8 Back-Up Ring (BC) | 1 |
| 4/39 | 16-44 | PS-8 Pent Seal | 1 |
| 4/40 | 300-11 | Valve Screw (1) | 2 |
| 4/41 | 300-31 | Spring (227) | 2 |
| 4/42 | 300-32 | Spring Holder | 2 |
| 4/43 | 16-49 | 3/16" Ball | 3 |
| 4/44 | 85A-07 | Spring (164) | 1 |
| 4/45 | 40-20 | 1/8" Ball | 3 |
| 4/46 | 40B-02 | Body | 1 |
| 4/47 | 24-15 | Release Lever | 1 |
| 4/48 | 40B-03 | Release Valve Stem | 1 |
| 4/49 | 16-33 | E-3.2 Snap Ring | 1 |
| 4/50 | UC-27 | P-3 O-Ring (CP) | 2 |
| 4/51 | 51-17 | Spring (371) | 1 |
| 4/52 | C58-08 | M4 x 5 Screw (FP) | 1 |
| 4/53 | 16-27 | Pin (26) | 1 |
| 4/54 | 16-28 | E-2.5 Snap Ring | 2 |
| 4/55 | 40-47 | M10 x 12 Screw (FP) | 1 |
| 4/56 | 16-40 | 9/32" Ball | 1 |
| 4/57 | 16-39 | Spring (76) | 1 |
| 4/58 | 16-38 | M3 Flat Washer | 1 |
| 4/59 | 16-26 | 7/32" Ball | 1 |
| 4/60 | C60-17 | Plug | 1 |
| 4/61 | 9H-38 | P-3 Back-Up Ring (BC) | 1 |
| 4/62 | C60-19 | Spring (395) | 1 |
| 4/63 | C60-20 | Spring (396) | 1 |
| 4/64 | C60-21 | Valve Screw (20) | 1 |
| 4/65 | C60-22 | Strainer | 1 |
| 4/66 | C60-23 | Filter | 1 |
| 4/67 | C60-24 | SI-15 SI-Ring | 1 |
| 4/68 | C60-25 | S-40 O-Ring | 1 |
| 4/69 | 300-21 | P-28 O-Ring | 1 |
| 4/70 | 40B-04 | Oil Reservoir | 1 |
| 4/71 | ROB-25 | Magnet | 1 |
| 4/72 | 410-55 | Reservoir Cap | 1 |
| 4/73 | 40B-05 | Body Handle Ass'y | 1 |
| 4/74 | 40B-06 | Body Handle Grip | 1 |
| 4/75 | 40A-03 | 2.5 x 10 Dowel Pin (D) | 2 |
