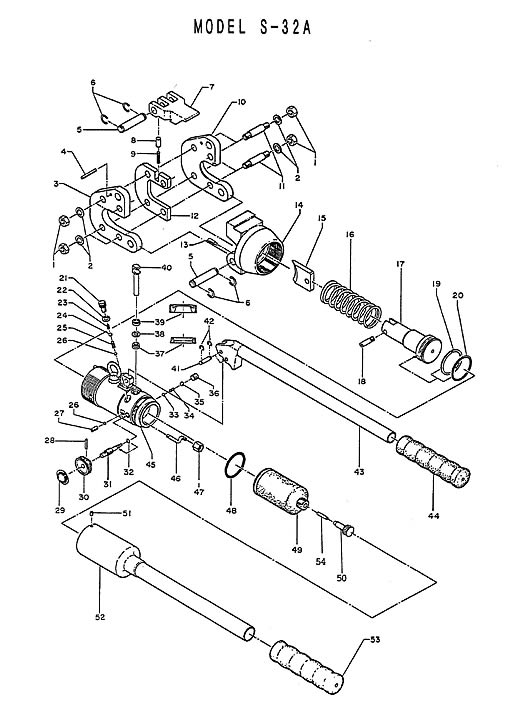

S-32A Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 3/01 | 40-31 | M10 Hex Nut | 8 |
| 3/02 | 40-32 | M10 Lock washer | 8 |
| 3/03 | 32-01 | Main Head | 1 |
| 3/04 | 26-02 | 4 x 36 Drive pin | 1 |
| 3/05 | 26-03 | Pin (31) | 2 |
| 3/06 | 26-04 | CE-12.7 Snap Ring | 4 |
| 3/07 | 26-05 | Latch | 1 |
| 3/08 | 26-06 | Spring Holder | 1 |
| 3/09 | 26-07 | Spring (81) | 1 |
| 3/10 | 32-02 | Head Shear | 1 |
| 3/11 | 26-09 | Stud Bolt (2) | 4 |
| 3/12 | 32-03 | Spacer | 1 |
| 3/13 | 55A-11 | M5 x 10 Screw (DP) | 1 |
| 3/14 | 32-05 | Body Head | 1 |
| 3/15 | 32-06 | Blade | 1 |
| 3/16 | 32-07 | Spring (182) | 1 |
| 3/17 | 32-08 | Ram | 1 |
| 3/18 | 32-09 | Blade Screw | 1 |
| 3/19 | 32-10 | P-45 Back-Up Ring (BC) | 1 |
| 3/20 | 32-11 | P-45 O-Ring | 1 |
| 3/21 | 26-19 | Exhaust Valve Screw | 1 |
| 3/22 | 26-20 | Copper Gasket (4) | 1 |
| 3/23 | 26-21 | Spring (68) | 1 |
| 3/24 | 26-22 | 1/4" Ball | 1 |
| 3/25 | 16-48 | Spring (4) | 1 |
| 3/26 | 16-49 | 3/16" Ball | 2 |
| 3/27 | 32-23 | M6 x 15 Screw (FP) | 1 |
| 3/28 | 32-13 | 2.5 x 20 Drive Pin | 1 |
| 3/29 | 32-14 | Release Knob Label | 1 |
| 3/30 | 32-15 | Release Knob | 1 |
| 3/31 | 32-16 | Release Valve Stem | 1 |
| 3/32 | 16-36 | P-3 O-Ring (A) | 1 |
| 3/33 | 16-26 | 7/32" Ball | 1 |
| 3/34 | 16-39 | Spring (76) | 1 |
| 3/35 | 16-40 | 9/32" Ball | 1 |
| 3/36 | 16-41 | M10 x 10 Screw (FP) | 1 |
| 3/37 | 32-18 | PS-9 Pent Seal | 1 |
| 3/38 | 32A-01 | P-9 Back-up Ring (BC) | 1 |
| 3/39 | 32A-02 | VC-9 Oil Seal | 1 |
| 3/40 | 32-21 | Pump Piston | 1 |
| 3/41 | 26-29 | Pin (5) | 2 |
| 3/42 | 40-49 | CE-7 Snap Ring | 4 |
| 3/43 | 26-30 | Pump Handle | 1 |
| 3/44 | 26-31 | Pump Handle Grip | 1 |
| 3/45 | 32A-04 | Body | 1 |
| 3/46 | 26-34 | Suction Tube | 1 |
| 3/47 | 26-35 | Filter Base Ass'y | 1 |
| 3/48 | 26-37 | P-38 O-Ring | 1 |
| 3/49 | 32A-03 | Oil Reservoir (10) | 1 |
| 3/50 | 410-55 | Reservoir Cap | 1 |
| 3/51 | 55A-24 | M4 x 5 Screw (CP) | 1 |
| 3/52 | 26-39 | Body Handle | 1 |
| 3/53 | 26-40 | Body Handle Grip | 1 |
| 3/54 | ROB-25 | Magnet | 1 |
