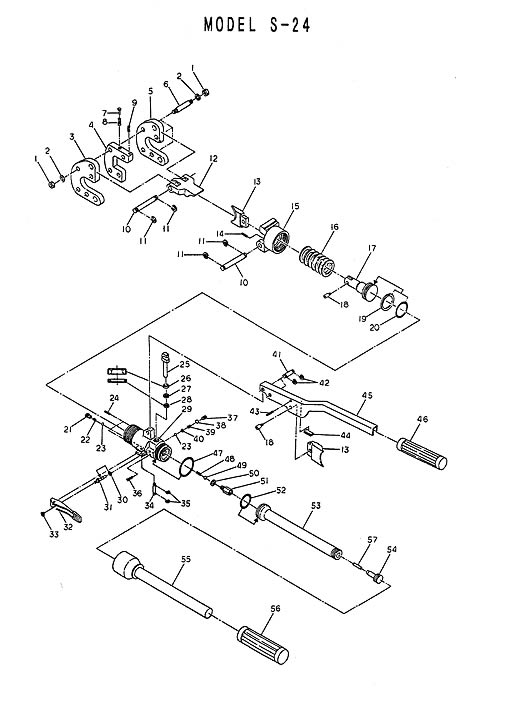

S-24 Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 2/01 | 40-24 | M8 Hex Nut | 8 |
| 2/02 | 40-25 | M8 Lock Washer | 8 |
| 2/03 | 24-02 | Main Head | 1 |
| 2/04 | 24-03 | Spacer | 1 |
| 2/05 | 24-04 | Head Shear | 1 |
| 2/06 | 24-05 | Stud Bolt (21) | 4 |
| 2/07 | 20-71 | Slide Pin | 1 |
| 2/08 | 85-37 | Spring (144) | 1 |
| 2/09 | 5-09 | 2 x 10 Drive Pin | 1 |
| 2/10 | 24-06 | Pin (142) | 2 |
| 2/11 | 40-16 | CE-10 Snap Ring | 4 |
| 2/12 | 24-07 | Latch | 1 |
| 2/13 | 24-08 | Blade | 2 |
| 2/14 | 55A-11 | M5 x 10 Screw (DP) | 1 |
| 2/15 | 24-09 | Body Head | 1 |
| 2/16 | 24-10 | Spring (375) | 1 |
| 2/17 | 24-11 | Ram | 1 |
| 2/18 | 16-19 | Blade Screw | 2 |
| 2/19 | 40-43 | P-32 Back-Up Ring (BC) | 1 |
| 2/20 | 40-44 | P-32 O-Ring | 1 |
| 2/21 | 16-24 | Valve screw (3) | 1 |
| 2/22 | 16-25 | Spring (2) | 1 |
| 2/23 | 16-26 | 7/32" Ball | 2 |
| 2/24 | 40A-03 | 2.5 x 10 Dowel Pin (D) | 2 |
| 2/25 | 24-12 | Pump Piston | 1 |
| 2/26 | 40A-05 | VC8 Oil Seal | 1 |
| 2/27 | 85-33 | P-8 Back-Up Ring (BC) | 1 |
| 2/28 | 16-44 | PS-8 Pent Seal | 1 |
| 2/29 | 24-13 | Body | 1 |
| 2/30 | 16-36 | P-3 O-Ring (A) | 1 |
| 2/31 | 24-14 | Release Valve Stem | 1 |
| 2/32 | 24-15 | Release Lever | 1 |
| 2/33 | 16-33 | E-3.2 Snap Ring | 1 |
| 2/34 | 16-27 | Pin (26) | 1 |
| 2/35 | 16-28 | E-2.5 Snap Ring | 2 |
| 2/36 | 51-17 | Spring (371) | 1 |
| 2/37 | 40-47 | M10 x 12 Screw (FP) | 1 |
| 2/38 | 16-40 | 9/32" Ball | 1 |
| 2/39 | 16-39 | Spring (76) | 1 |
| 2/40 | 16-38 | M3 Flat Washer | 1 |
| 2/41 | 51-23 | Pin (131) | 2 |
| 2/42 | 16-30 | CE-6 Snap Ring | 4 |
| 2/43 | 24-01 | 4 x 16 Dowel Pin (G) | 1 |
| 2/44 | 24-16 | Rubber | 1 |
| 2/45 | 24-17 | Pump Handle | 1 |
| 2/46 | 51-25 | Pump Handle Grip | 1 |
| 2/47 | 85-51 | S-36 O-Ring | 1 |
| 2/48 | 16-48 | Spring (4) | 1 |
| 2/49 | 16-49 | 3/16" Ball | 1 |
| 2/50 | 16-50 | Copper Gasket (6) | 1 |
| 2/51 | 16-51 | Suction Valve Screw Ass'y | 1 |
| 2/52 | 16-55 | P-26 O-Ring (A) | 1 |
| 2/53 | 20A-03 | Oil Reservoir (4) | 1 |
| 2/54 | 410-55 | Reservoir Cap | 1 |
| 2/55 | 24-18 | Body Handle | 1 |
| 2/56 | 24-19 | Body Handle Grip | 1 |
| 2/57 | ROB-25 | Magnet | 1 |
