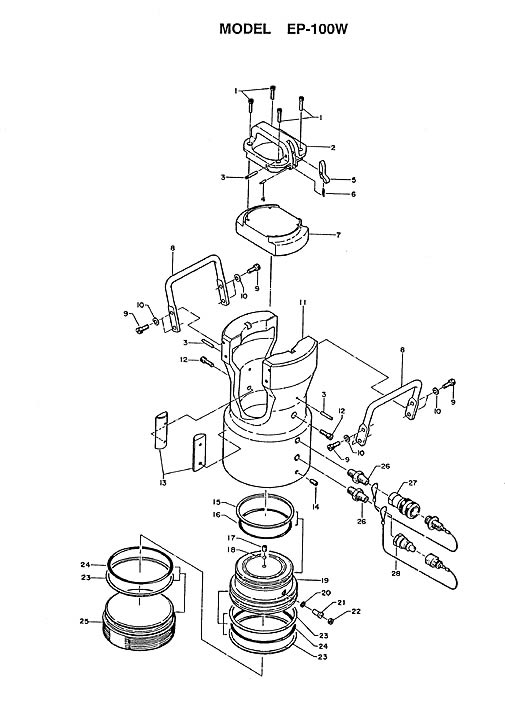

EP-100W Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 39/1 | 100W-01 | M6 x 25 Screw | 4 |
| 39/10 | 40-25 | M8 Lock Washer | 8 |
| 39/11 | 100W-09 | Cylinder | 1 |
| 39/12 | 100W-10 | M8 x 20 Screw | 2 |
| 39/13 | 100W-11 | Stopper | 2 |
| 39/14 | 100W-12 | M8 x 15 Screw (C.P.) | 2 |
| 39/15 | 100W-13 | P-105 Back-Up Ring (B.C.) | 1 |
| 39/16 | 100W-14 | P-105 O-Ring | 1 |
| 39/17 | 410-37 | M8 x 10 Screw (F.P.) | 1 |
| 39/18 | 26-22 | 1/4" Ball | 1 |
| 39/19 | 100W-16 | Ram | 1 |
| 39/2 | 100W-02 | Cap Handle | 1 |
| 39/20 | 100W-17 | Copper Gasket (20) | 1 |
| 39/21 | 100W-18 | Safety Valve Assembly | 1 |
| 39/22 | 100W-26 | Retaining Screw | 1 |
| 39/23 | 100W-20 | P-125 Back-Up Ring (B.C.) | 3 |
| 39/24 | 100W021 | P-125 O-Ring | 2 |
| 39/25 | 100W-22 | Cylinder Cap | 1 |
| 39/26 | 60-18 | Nipple 3/8" PT-M 3/8" PT-M | 2 |
| 39/27 | E3-28 | Female Coupler BI | 1 |
| 39/28 | E3-30 | Male Coupler BI | 1 |
| 39/3 | 38A-03 | 5 x 30 Dowel Pin (G) | 3 |
| 39/4 | 100W-03 | 2.5 x 14 Dowel Pin (G) | 1 |
| 39/5 | 100W-04 | Trigger | 1 |
| 39/6 | 38A-06 | Spring (180) | 1 |
| 39/7 | 100W-06 | Head Cap | 1 |
| 39/8 | 100W-07 | Grip | 2 |
| 39/9 | 100W-08 | M8 x 18 Screw | 8 |
