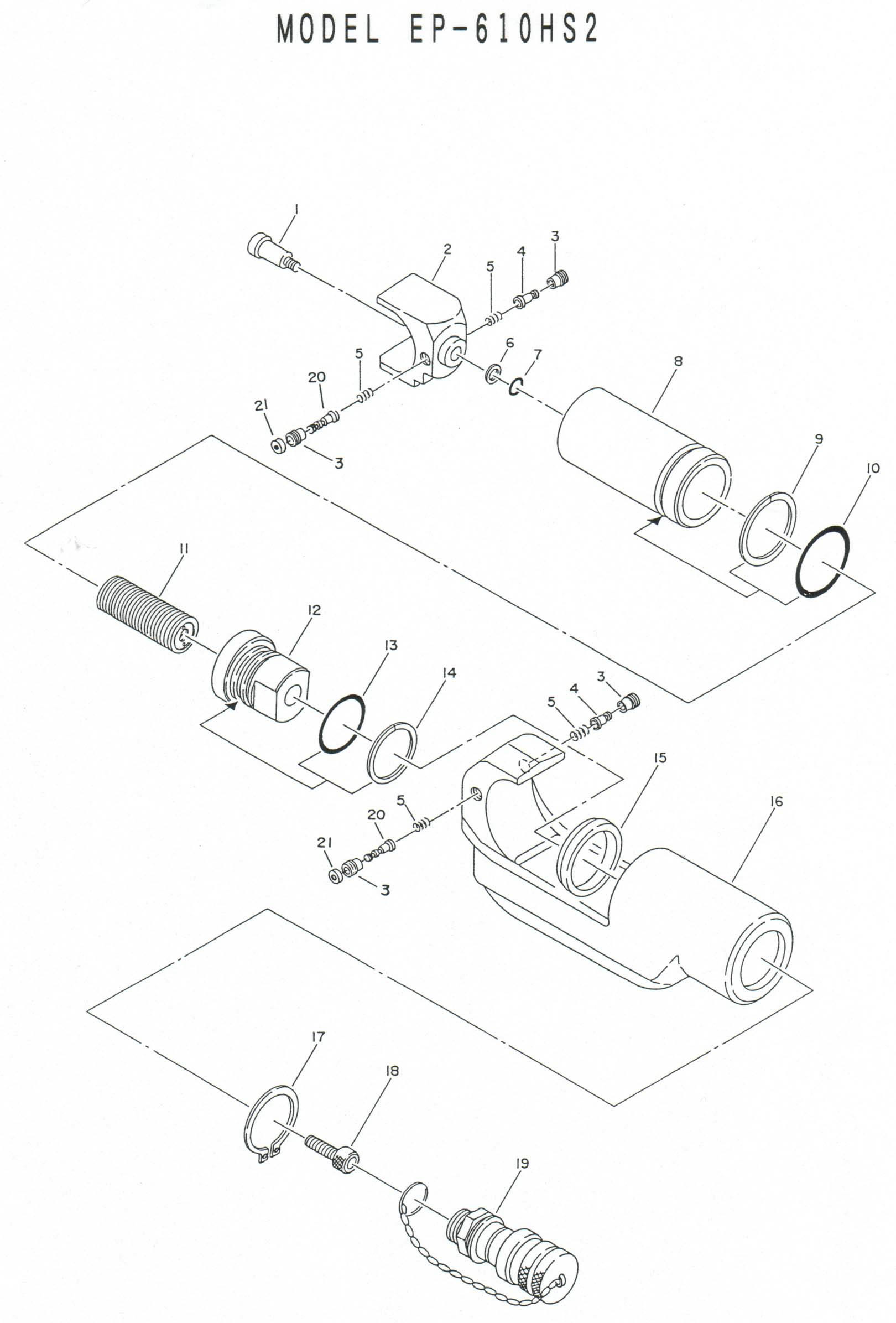

EP-610HS2 Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 1 | 610-08 | Spring Anchor Screw (1) | 1 |
| 10 | 610F-09 | AN29 O-Ring | 1 |
| 11 | 610-20 | Ram Spring (358) | 1 |
| 12 | 610-21 | Ram Retainer | 1 |
| 13 | 610F-14 | AN25 O-Ring | 1 |
| 14 | 610F-15 | AN-25 Back-up Ring (BC) | 1 |
| 15 | 610-26 | Dust Seal | 1 |
| 16 | 610-22 | Head | 1 |
| 17 | 610-23 | C-40 Snap Ring | 1 |
| 18 | 610-24 | M8 x 35 Retaining Screw | 1 |
| 19 | P85-81 | Female Coupler PH Type | 1 |
| 2 | 610-17 | Tool Jaw | 1 |
| 20 | 610-05B | Push Pin (B) | 2 |
| 21 | 610-27 | Stopper Nut | 2 |
| 3 | 610-04 | Retaining Screw | 4 |
| 4 | 610-05 | Push Pin | 2 |
| 5 | 610-06 | Spring (302) | 4 |
| 6 | 32A-01 | P-9 Back-up Ring (BC) | 1 |
| 7 | RF-38 | P-9 O-Ring | 1 |
| 8 | 610-19 | Ram | 1 |
| 9 | 610F-08 | AN-29 Back-up Ring (BC) | 1 |
