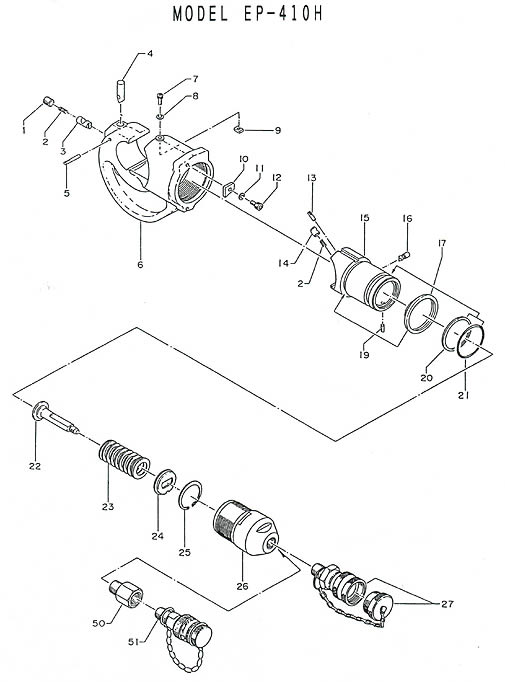

EP-410H Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 1 | 16-41 | M10 x 10 Screw (FP) | 1 |
| 10 | 410H-01 | Stopper | 1 |
| 11 | 410-09 | M5 Lock Washer | 1 |
| 12 | 410H-02 | M5 x 10 Screw | 1 |
| 13 | 410-11 | 2.5 x 14 Drive Pin (BW) | 1 |
| 14 | 410-12 | Retainer Pin (B) | 1 |
| 15 | 410-13 | Ram | 1 |
| 16 | 410-14 | Die Release Pin (B) | 1 |
| 17 | 430-03 | Dust Seal | 1 |
| 19 | 410-17 | 2.5 x 8 Dowel Pin (B) | 1 |
| 2 | 410-01 | Spring (177) | 2 |
| 20 | 22-16 | P-40 Back-Up Ring (BC) | 1 |
| 21 | 410-70 | P-40 O-Ring (C.P.) | 1 |
| 22 | 410-18 | Ram Spring Guide | 1 |
| 23 | 410-19 | Ram Spring (65) | 1 |
| 24 | 410-20 | Ram Spring Support | 1 |
| 25 | 410-21 | OV-36 Snap Ring | 1 |
| 26 | 410H-03 | Cylinder | 1 |
| 27 | P85-81 | Female Coupler PH Type | 1 |
| 3 | 410-02 | Retainer Pin (A) | 1 |
| 4 | 410-03 | Die Release Pin (A) | 1 |
| 5 | 410-04 | 2.5 x 25 Drive Pin (BW) | 1 |
| 50 | 410H-80 | Adapter 3/8" NPT-M. 3/8" PT-F | 1 |
| 51 | 100-24 | Female Coupler IZUMI | 1 |
| 6 | 410-05 | Head | 1 |
| 7 | 410-06 | M4 x 10 Screw | 1 |
| 8 | 410-07 | M4 Lock Washer | 1 |
| 9 | 410-08 | Key | 1 |
