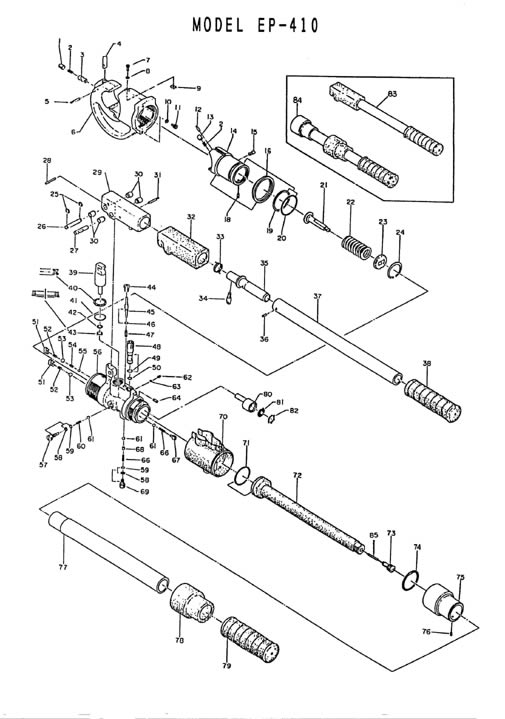

EP-410 Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 18/1 | 16-41 | M10 x 10 Screw (FP) | 1 |
| 18/10 | 410-09 | M5 Lock Washer | 2 |
| 18/11 | 410-10 | M5 x 6 Screw | 2 |
| 18/12 | 410-11 | 2.5 x 14 Drive Pin (BW) | 1 |
| 18/13 | 410-12 | Retainer Pin (B) | 1 |
| 18/14 | 410-13 | Ram | 1 |
| 18/15 | 410-14 | Die Release Pin (B) | 1 |
| 18/16 | 430-03 | Dust Seal | 1 |
| 18/18 | 410-17 | 2.5 x 8 Dowel Pin (B) | 1 |
| 18/19 | 22-16 | P-40 Back-Up Ring (BC) | 1 |
| 18/2 | 410-01 | Spring (177) | 2 |
| 18/20 | 410-70 | P-40 O-Ring (C.P.) | 1 |
| 18/21 | 410-18 | Ram Spring Guide | 1 |
| 18/22 | 410-19 | Ram Spring (65) | 1 |
| 18/23 | 410-20 | Ram Spring Support | 1 |
| 18/24 | 410-21 | OV-36 Snap Ring | 1 |
| 18/25 | 40-49 | CE-7 Snap Ring | 2 |
| 18/26 | 410-22 | Pin (85) | 1 |
| 18/27 | 410-23 | Pin (84) | 1 |
| 18/28 | 85-57A | 5 x 32 Dowel Pin (G) | 1 |
| 18/29 | 410-24 | Pump Handle Head | 1 |
| 18/3 | 410-02 | Retainer Pin (A) | 1 |
| 18/30 | 410-25 | Bushing | 4 |
| 18/31 | 410-26 | 4 x 26 Dowel Pin (G) | 1 |
| 18/32 | 410-27 | Handle Head Insulation | 1 |
| 18/33 | UC-43 | Spring (146) | 1 |
| 18/34 | 85-61 | Push Pin | 1 |
| 18/35 | 410-28 | Pump Handle Stem | 1 |
| 18/36 | 410-29 | 3 x 8 Dowel Pin (G) | 1 |
| 18/37 | 410-30 | Pump Handle | 1 |
| 18/38 | 410-31 | Pump Handle Grip (2) | 1 |
| 18/39 | 410-32 | Pump Piston | 1 |
| 18/4 | 410-03 | Die Release Pin (A) | 1 |
| 18/40 | 410-33 | P-20 X-Ring | 1 |
| 18/41 | 410-34A | P-20 O-Ring (CP) | 1 |
| 18/42 | 85-33 | P-8 Back-Up Ring (BC) | 1 |
| 18/43 | 16-44 | PS-8 Pent Seal | 1 |
| 18/44 | 85-35 | Release Valve Screw (7) | 1 |
| 18/45 | 410-35 | Release Valve Stem | 1 |
| 18/46 | 16-36A | P-3 O-Ring (CP) | 2 |
| 18/47 | 85-37 | Spring (144) | 1 |
| 18/48 | 410-36 | Bypass Cartridge | 1 |
| 18/49 | 410-71 | S-9 O-Ring | 1 |
| 18/5 | 410-04 | 2.5 x 25 Drive Pin (BW) | 1 |
| 18/50 | 410-43 | P-8 O-Ring (CP) | 1 |
| 18/51 | 410-44 | Valve Screw (10) | 2 |
| 18/52 | 85-39 | Spring (67) | 2 |
| 18/53 | 16-40 | 9/32" Ball | 2 |
| 18/54 | 85-40 | Spring (66) | 1 |
| 18/55 | 16-49 | 3/16" Ball | 1 |
| 18/56 | 410-45 | Body | 1 |
| 18/57 | 410-46 | Suction Valve Plug | 1 |
| 18/58 | 410-47 | P-4 Back-Up Ring (BC) | 2 |
| 18/59 | 410-48A | P-4 O-Ring (CP) | 2 |
| 18/6 | 410-05 | Head | 1 |
| 18/60 | 16-48 | Spring (4) | 1 |
| 18/61 | 16-26 | 7/32" Ball | 3 |
| 18/62 | 85-47 | M4 x 4 Screw (FP) | 1 |
| 18/63 | 40-20 | 1/8" Ball | 1 |
| 18/64 | 410-49 | M5 x 8Screw | 1 |
| 18/66 | 85-49 | Spring (43) | 2 |
| 18/67 | 85-50 | Valve Screw (8) | 1 |
| 18/68 | 410-51 | Spring Holder | 1 |
| 18/69 | 410-52 | Valve Plug (1) | 1 |
| 18/7 | 410-06 | M4 x 10 Screw | 1 |
| 18/70 | 410-53 | Body Insulation | 1 |
| 18/71 | 75-26 | G-30 O-Ring | 1 |
| 18/72 | 410-54 | Oil Reservoir | 1 |
| 18/73 | 410-55 | Reservoir Cap | 1 |
| 18/74 | P100A-05 | G-40 O-Ring | 1 |
| 18/75 | 410-56 | Body Handle Extension | 1 |
| 18/76 | 410-57 | 2.5 x 6 Drive Pin | 1 |
| 18/77 | 410-58 | Body Handle | 1 |
| 18/78 | 410-59 | Handle Extension Insulation | 1 |
| 18/79 | 410-60 | Body Handle Grip | 1 |
| 18/8 | 410-07 | M4 Lock Washer | 1 |
| 18/80 | 410-72A | Strainer | 1 |
| 18/81 | 410-73 | Filter Screen | 1 |
| 18/82 | 410-74 | SI-20 Ring | 1 |
| 18/83 | 410-61 | Pump Handle Ass'y 28 TO 38 | 1 |
| 18/84 | 410-62 | Body Handle Ass'y 75 TO 79 | 1 |
| 18/85 | ROB-25 | Magnet | 1 |
| 18/9 | 410-08 | Key | 1 |
