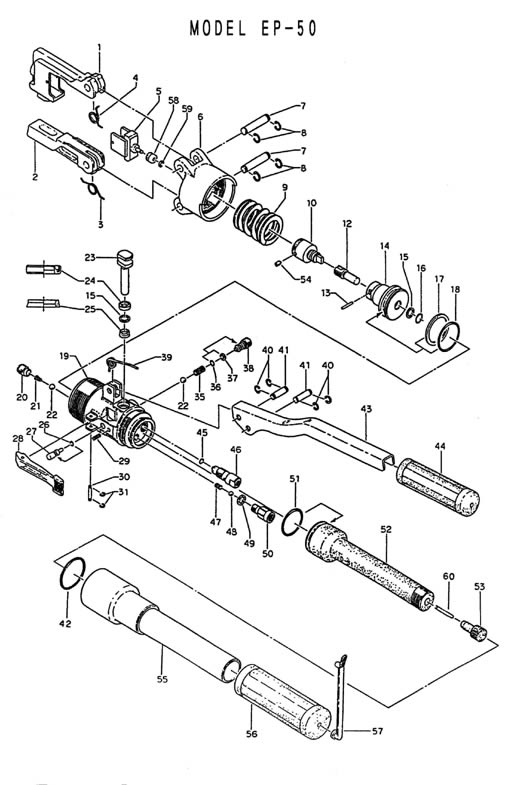

EP-50 Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 60/1 | 51-01A | Yoke (Ni) | 1 |
| 60/10 | 51-09 | Adapter | 1 |
| 60/12 | 51-10 | Adjust Pin | 1 |
| 60/13 | 51-34 | Parallel Pin 2 x 14 M6 | 1 |
| 60/14 | 51-12 | Ram | 1 |
| 60/15 | 85-33 | P-8 Back-Up Ring (BC) | 2 |
| 60/16 | 85-34 | P-8 O-Ring (A) | 1 |
| 60/17 | 16-22 | P-29 Back-Up Ring (BC) | 1 |
| 60/18 | 16-23 | P-29 O-Ring (A) | 1 |
| 60/19 | 51-13 | Body | 1 |
| 60/2 | 51-02A | Latch (Ni) | 1 |
| 60/20 | 16-24 | Valve screw (3) | 1 |
| 60/21 | 16-25 | Spring (2) | 1 |
| 60/22 | 16-26 | 7/32" Ball | 2 |
| 60/23 | 51-14 | Pump Piston | 1 |
| 60/24 | 40A-05 | VC8 Oil Seal | 1 |
| 60/25 | 16-44 | PS-8 Pent Seal | 1 |
| 60/26 | 16-36 | P-3 O-Ring (A) | 1 |
| 60/27 | 51-15 | Release Valve Stem | 1 |
| 60/28 | PM51-07A | Release Lever (Ni) | 1 |
| 60/29 | 51-17 | Spring (371) | 1 |
| 60/3 | 51-04A | Spring (509) (Ni) | 1 |
| 60/30 | 51-18 | Pin (129) | 1 |
| 60/31 | 51-35 | CE-3 Snap Ring | 2 |
| 60/35 | 51-20 | Spring (341) | 1 |
| 60/36 | 410-48 | P-4 O-Ring (A) | 1 |
| 60/37 | 410-47 | P-4 Back-Up Ring (BC) | 1 |
| 60/38 | 51-21 | Plug | 1 |
| 60/39 | 51-36 | Spring (343) | 1 |
| 60/4 | 51-03A | Spring (508) (Ni) | 1 |
| 60/40 | 16-30 | CE-6 Snap Ring | 4 |
| 60/41 | 51-23 | Pin (131) | 2 |
| 60/42 | 85-51 | S-36 O-Ring | 1 |
| 60/43 | 51-24 | Pump Handle | 1 |
| 60/44 | 51-25 | Pump Handle Grip | 1 |
| 60/45 | 51-55 | Copper Gasket (35) | 1 |
| 60/46 | 51-26 | Relief Valve Assembly | 1 |
| 60/47 | 51-27 | Spring (340) | 1 |
| 60/48 | 16-49 | 3/16" Ball | 1 |
| 60/49 | 100W-17 | Copper Gasket (20) | 1 |
| 60/5 | 51-05A | Die Holder (Ni) | 1 |
| 60/50 | 51-28 | Filter Assembly | 1 |
| 60/51 | 16-55 | P-26 O-Ring (A) | 1 |
| 60/52 | 51-29 | Oil Reservoir (16) | 1 |
| 60/53 | 410-55 | Reservoir Cap | 1 |
| 60/54 | 16-62 | M4 x 4 Screw (CP) | 1 |
| 60/55 | 51-37 | Body Handle Assembly | 1 |
| 60/56 | 51-31 | Body Handle Grip | 1 |
| 60/57 | 51-32 | Band | 1 |
| 60/58 | 51-33 | Collar | 1 |
| 60/59 | 51-39 | JE-3 Snap Ring | 1 |
| 60/6 | 51-06A | Body Head (Ni) | 1 |
| 60/60 | ROB-25 | Magnet | 1 |
| 60/7 | 51-07A | Pin (188) (Ni) | 2 |
| 60/8 | 16-09A | CE-8 Snap Ring (Ni) | 4 |
| 60/9 | 51-08 | Spring (253) | 1 |
