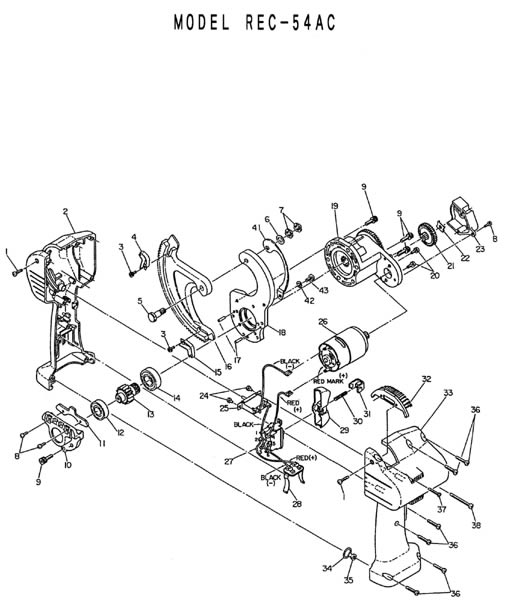

REC-54AC Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 1 | RC50-01 | M3 x 14 Screw (TP) | 2 |
| 10 | RC50-10 | Bearing Case | 1 |
| 11 | RC50-11 | Cutter Plate | 1 |
| 12 | RC50-12 | Bearing 6001 | 1 |
| 13 | RC50-13 | Pinion Gear | 1 |
| 14 | RC50-14 | Bearing 6002 | 1 |
| 15 | RC50-15 | Gear Guide (A) | 1 |
| 16 | RC54AC-1 | Moving Blade (Ni) | 1 |
| 17 | RC50-17 | Needle Pin | 2 |
| 18 | RC54AC-2 | Stationary Blade (Ni) | 1 |
| 19 | RC50-19 | Gear Case Assembly | 1 |
| 2 | RC50-02 | Housing (L) | 1 |
| 20 | RC50-20 | M4 x 8 Screw | 2 |
| 21 | RC50-21 | Gear | 1 |
| 22 | RC50-22 | Gear Plate | 2 |
| 23 | RC50-23 | Gear Cover | 1 |
| 24 | RC50-24 | Retaining Pin (CP) | 2 |
| 25 | RC50-25 | Circuit Breaker | 1 |
| 26 | RC50-26 | Motor | 1 |
| 27 | RC50-27 | Switch | 1 |
| 28 | RC50-28 | Contact | 1 |
| 29 | RC50-29 | Switch Knob | 1 |
| 3 | RC50-03 | M3 x 3 Screw | 2 |
| 30 | RC50-30 | Spring (524) | 1 |
| 31 | RC50-31 | Switch Lock | 1 |
| 32 | RC50-32 | Brush | 1 |
| 33 | RC50-33 | Housing (R) | 1 |
| 34 | ROB-101 | Hanging Ring | 1 |
| 35 | ROB-120 | Ring Support | 1 |
| 36 | ROB-29 | M4 x 20 Screw (TP) | 6 |
| 37 | RC50-37 | M3 x 20 Screw (TP) | 1 |
| 38 | ROB-126 | M4 x 40 Screw (TP) | 1 |
| 4 | RC50-04 | Gear Guide (B) | 1 |
| 41 | RC54-06 | Protector | 1 |
| 42 | 410-09 | M5 Lock Washer | 1 |
| 43 | E1-26 | M5 x 8 Screw | 1 |
| 5 | RC54-01 | Shoulder Screw | 1 |
| 6 | RC54-02 | M10 Flat Washer | 1 |
| 7 | RC54-03 | Nut AN10 | 2 |
| 8 | RC50-08 | M3 x 8 Screw | 5 |
| 9 | RC50-09 | M5 x 14 Screw | 11 |
