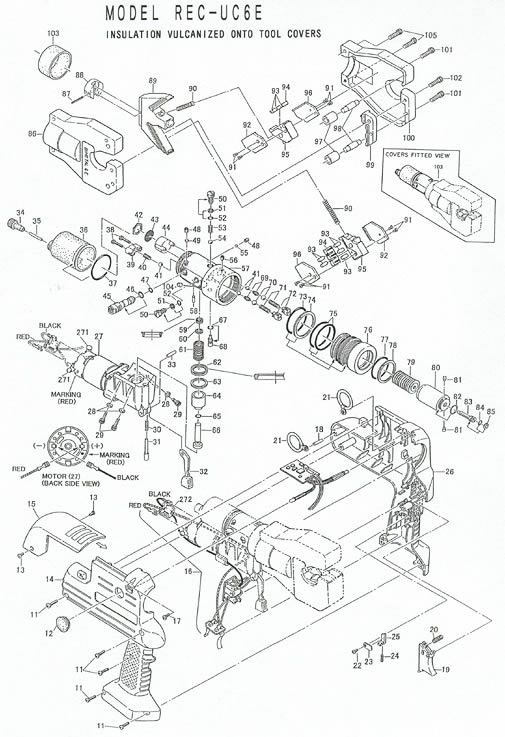

REC-UC6E Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 100 | 6E-05 | Tool Cover (A) | 1 |
| 101 | EG-64 | M5 x 30 Screw | 2 |
| 102 | E3-49 | M6 x 30 Screw | 1 |
| 103 | RC58-04 | Head Insulation (2) | 1 |
| 104 | FF-07 | Expander MB700-050 | 1 |
| 105 | 100W-01 | M6 x 25 Screw | 2 |
| 11 | R150-01 | M4 x 15 Screw | 5 |
| 12 | ROB-103 | Cartridge Cap | 1 |
| 13 | R150-02 | M3 x 6 Screw | 2 |
| 14 | R150-03 | Housing (R) | 1 |
| 15 | R150-04 | Reservoir Cover | 1 |
| 16 | R150-05 | LED Unit (4) | 1 |
| 17 | ROB-160 | M3 x 10 Screw | 1 |
| 18 | R150-07 | 4 x 16 Parallel Pin | 1 |
| 19 | R150-08 | Trigger | 1 |
| 20 | R150-09 | Spring (699) | 1 |
| 21 | R150-10 | Hanging Ring Assembly | 2 |
| 22 | ROB-94 | M3 x 5 Screw (TP) | 1 |
| 23 | 458-01 | Retaining Plate | 1 |
| 24 | 458-02 | Spring (639) | 1 |
| 25 | 458-03 | Stopper | 1 |
| 26 | R150-11 | Housing (L) | 1 |
| 27 | R150-12 | Power Unit | 1 |
| 271 | SAN-206 | Capacitor | 2 |
| 272 | SAN-207 | Ferrite Core | 1 |
| 28 | E3-101 | M4 Flat Washer | 4 |
| 29 | ROB-128 | M4 x 14 Screw | 4 |
| 30 | R150-13 | Spring (698) | 1 |
| 31 | R150-14 | Push Pin | 1 |
| 32 | R150-06B | Release Lever | 1 |
| 33 | 24-01 | 4 x 16 Dowel Pin (G) | 1 |
| 34 | 410-55 | Reservoir Cap | 1 |
| 35 | ROB-25 | Magnet | 1 |
| 36 | R4412-01 | Oil Reservoir (36) | 1 |
| 37 | 75-26 | G-30 O-Ring | 1 |
| 38 | R150-16 | M3 x 16 Screw | 2 |
| 39 | R150-17 | Valve Block | 1 |
| 40 | 610-06 | Spring (302) | 1 |
| 41 | 16-49 | 3/16" Ball | 3 |
| 42 | 410-74 | SI-20 Ring | 1 |
| 43 | 410-73 | Filter Screen | 1 |
| 44 | R150-18 | Strainer | 1 |
| 45 | R150-19E | Valve Cartridge | 1 |
| 46 | R510A-08 | S-8 O-Ring | 1 |
| 47 | 16-60 | P-7 O-Ring (A) | 1 |
| 48 | 85-47 | M4 x 4 Screw (FP) | 2 |
| 49 | R150-21 | Retainer | 1 |
| 50 | 51-21 | Plug | 2 |
| 51 | 410-47 | P-4 Back-Up Ring (BC) | 2 |
| 52 | 410-48 | P-4 O-Ring (A) | 2 |
| 53 | 51-20 | Spring (341) | 1 |
| 54 | 16-26 | 7/32" Ball | 1 |
| 55 | 40-20 | 1/8" Ball | 1 |
| 56 | 55A-24 | M4 x 5 Screw (CP) | 1 |
| 57 | 6E-01 | Body | 1 |
| 58 | 610F-11 | 3 x 8 Dowel Pin (D) | 1 |
| 59 | 16-44 | PS-8 Pent Seal | 1 |
| 60 | 85-33 | P-8 Back-Up Ring (BC) | 1 |
| 61 | R150-23 | Spring (590) | 1 |
| 62 | R150-24 | PS-20 Pent Seal | 1 |
| 63 | 35-18 | P-20 Back-Up Ring (BC) | 1 |
| 64 | R150-25 | Pump Piston (1) | 1 |
| 65 | 5N-35 | P-5 O-Ring (A) | 1 |
| 66 | R150-26 | Pump Piston (2) | 1 |
| 67 | 16-36 | P-3 O-Ring (A) | 1 |
| 68 | ROB-135 | Release Valve Stem | 1 |
| 69 | 85-40 | Spring (66) | 2 |
| 70 | 16-40 | 9/32" Ball | 2 |
| 71 | 85-39 | Spring (67) | 2 |
| 72 | 410-44 | Valve Screw (10) | 2 |
| 73 | 26-37 | P-38 O-Ring | 1 |
| 74 | 150A-11 | P-38 Back-Up Ring (BC) | 1 |
| 75 | C60-25 | S-40 O-Ring | 2 |
| 76 | 6E-02 | Cylinder | 1 |
| 77 | 85-23 | P-34 O-Ring | 1 |
| 78 | 85-22 | P-34 Back-up Ring (BC) | 1 |
| 79 | UC-17 | Spring Ass'y | 1 |
| 80 | UC-16 | Ram | 1 |
| 81 | 16-42 | M4 x 6 Screw (FP) | 2 |
| 82 | UC-44 | Spring (406) | 1 |
| 83 | UC-12 | Retaining Screw | 1 |
| 84 | RB-70 | P-6 O-Ring | 1 |
| 85 | UC-28 | P-6 Back-up Ring (BC) | 1 |
| 86 | 6E-04 | Tool Cover (B) | 1 |
| 87 | UC-14 | 4 x 30 Drive Pin (AW) | 1 |
| 88 | UC-13A | Cam Yoke Holder | 1 |
| 89 | 6A-09 | Cam Yoke | 1 |
| 90 | UC-06 | Side Jaw Spring | 2 |
| 91 | 6A-11 | M3 x 8 Screw | 8 |
| 92 | 6A-08 | Slide Plate (1) | 2 |
| 93 | UC-07 | Roller Bearing | 10 |
| 94 | UC-08 | Roller Retainer | 2 |
| 95 | 6A-07 | Side Jaw | 2 |
| 96 | 6A-06 | Slide Plate (2) | 2 |
| 97 | 6A-04 | Bushing | 2 |
| 98 | 6A-03 | Pin (2) | 2 |
| 99 | UC-03 | Fixed Jaw | 1 |
