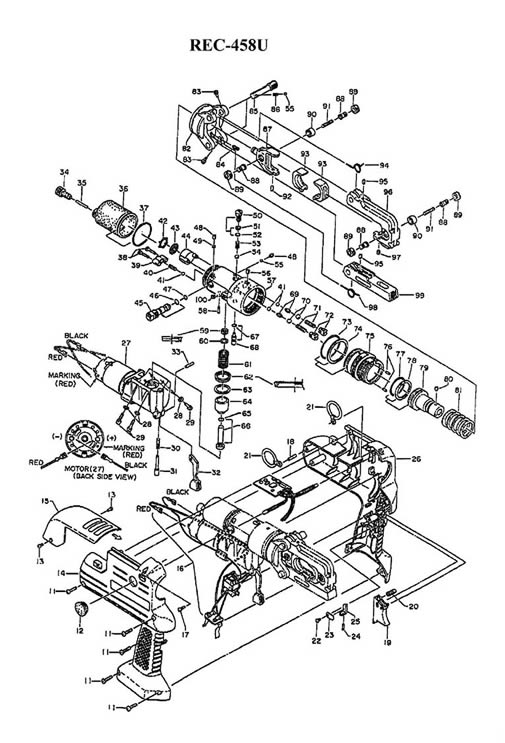

REC-458U Spare Parts
| Key | Part Code | Description | Qty |
|---|---|---|---|
| 33/100 | FF-07 | Expander MB700-050 | 1 |
| 33/11 | R150-01 | M4 x 15 Screw | 5 |
| 33/12 | ROB-103 | Cartridge Cap | 1 |
| 33/13 | R150-02 | M3 x 6 Screw | 2 |
| 33/14 | R150-03 | Housing (R) | 1 |
| 33/15 | R150-04 | Reservoir Cover | 1 |
| 33/16 | R150-05 | LED Unit (4) | 1 |
| 33/17 | ROB-160 | M3 x 10 Screw | 1 |
| 33/18 | R150-07 | 4 x 16 Parallel Pin | 1 |
| 33/19 | R150-08 | Trigger | 1 |
| 33/20 | R150-09 | Spring (699) | 1 |
| 33/21 | R150-10 | Hanging Ring Assembly | 2 |
| 33/22 | ROB-94 | M3 x 5 Screw (TP) | 1 |
| 33/23 | 458-01 | Retaining Plate | 1 |
| 33/24 | 458-02 | Spring (639) | 1 |
| 33/25 | 458-03 | Stopper | 1 |
| 33/26 | R150-11 | Housing (L) | 1 |
| 33/27 | R150-12 | Power Unit | 1 |
| 33/28 | E3-101 | M4 Flat Washer | 4 |
| 33/29 | ROB-128 | M4 x 14 Screw | 4 |
| 33/30 | R150-13 | Spring (698) | 1 |
| 33/31 | R150-14 | Push Pin | 1 |
| 33/32 | R150-06A | Release Lever | 1 |
| 33/33 | 24-01 | 4 x 16 Dowel Pin (G) | 1 |
| 33/34 | 410-66 | Reservoir Cap | 1 |
| 33/35 | ROB-25 | Magnet | 1 |
| 33/36 | R150-15 | Oil Reservoir (35) | 1 |
| 33/37 | 75-26 | G-30 O-Ring | 1 |
| 33/38 | R150-16 | M3 x 16 Screw | 2 |
| 33/39 | R150-17 | Valve Block | 1 |
| 33/40 | 610-06 | Spring (302) | 1 |
| 33/41 | 16-49 | 3/16" Ball | 3 |
| 33/42 | 410-74 | SI-20 Ring | 1 |
| 33/43 | 410-73 | Filter Screen | 1 |
| 33/44 | R150-18 | Strainer | 1 |
| 33/45 | R150-19B | Valve Cartridge | 1 |
| 33/46 | R510A-08 | S-8 O-Ring | 1 |
| 33/47 | 16-60 | P-7 O-Ring (A) | 1 |
| 33/48 | 85-47 | M4 x 4 Screw (FP) | 2 |
| 33/49 | R150-21 | Retainer | 1 |
| 33/50 | 51-21 | Plug | 1 |
| 33/51 | 410-47 | P-4 Back-Up Ring (BC) | 1 |
| 33/52 | 410-48 | P-4 O-Ring (A) | 1 |
| 33/53 | 51-20 | Spring (341) | 1 |
| 33/54 | 16-26 | 7/32" Ball | 1 |
| 33/55 | 40-20 | 1/8" Ball | 3 |
| 33/56 | 55A-24 | M4 x 5 Screw (CP) | 1 |
| 33/57 | 458-04 | Body | 1 |
| 33/58 | 610F-11 | 3 x 8 Dowel Pin (D) | 1 |
| 33/59 | 16-44 | PS-8 Pent Seal | 1 |
| 33/60 | 85-33 | P-8 Back-Up Ring (BC) | 1 |
| 33/61 | R150-23 | Spring (590) | 1 |
| 33/62 | R150-24 | PS-20 Pent Seal | 1 |
| 33/63 | 35-18 | P-20 Back-Up Ring (BC) | 1 |
| 33/64 | R150-25 | Pump Piston (1) | 1 |
| 33/65 | 5N-35 | P-5 O-Ring (A) | 1 |
| 33/66 | R150-26 | Pump Piston (2) | 1 |
| 33/67 | 16-36 | P-3 O-Ring (A) | 1 |
| 33/68 | ROB-135 | Release Valve Stem | 1 |
| 33/69 | 85-40 | Spring (66) | 2 |
| 33/70 | 16-40 | 9/32" Ball | 2 |
| 33/71 | 85-39 | Spring (67) | 2 |
| 33/72 | 410-44 | Valve Screw (10) | 2 |
| 33/73 | 26-37 | P-38 O-Ring | 1 |
| 33/74 | 150A-11 | P-38 Back-Up Ring (BC) | 1 |
| 33/75 | 458-05 | Cylinder | 1 |
| 33/76 | ROB-14 | 2 x 8 Dowel Pin (D) | 2 |
| 33/77 | 300-21 | P-28 O-Ring | 1 |
| 33/78 | 55D-03 | P-28 Back-Up Ring (BC) | 1 |
| 33/79 | ROB-149 | Ram | 1 |
| 33/80 | 358-01 | M5 x 5 Screw (CP) | 1 |
| 33/82 | 358-03 | Body Head | 1 |
| 33/83 | 358-04 | M2.5 x 6 Screw | 2 |
| 33/84 | 55A-11 | M5 x 10 Screw (DP) | 1 |
| 33/85 | 358-02 | Slide Pin | 2 |
| 33/86 | 40-19 | Spring (8) | 2 |
| 33/87 | 358-05 | Die Holder | 1 |
| 33/88 | 58-02 | Push Pin | 4 |
| 33/89 | 58-01 | Retaining Screw | 4 |
| 33/90 | 58-04 | Collar | 2 |
| 33/91 | 58-03 | Spring (5) | 2 |
| 33/92 | 358-06 | M5 x 10 Screw | 1 |
| 33/93 | C58-03 | D3 Saddle Dies | 2 |
| 33/94 | 358-11 | Spring (602) | 1 |
| 33/95 | 358-08 | M4 x 6 Screw | 2 |
| 33/96 | 358-10 | Yoke | 1 |
| 33/97 | ROB-51 | M5 x 5 Screw | 1 |
| 33/98 | 358-07 | Spring (603) | 1 |
| 33/99 | 358-09 | Latch | 1 |
