Product Information

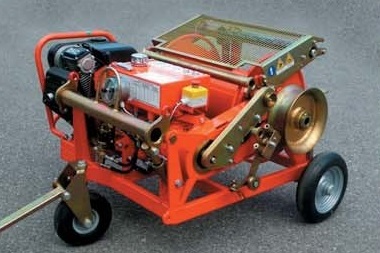

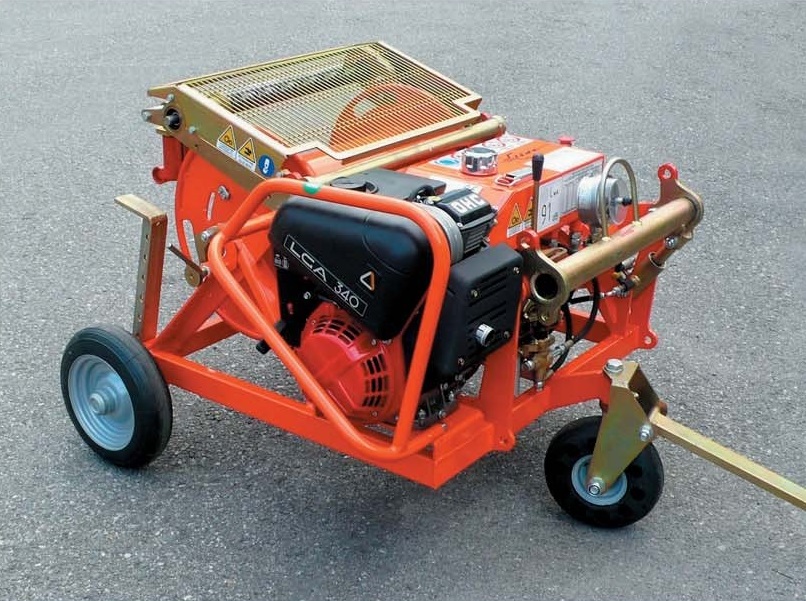

Hydraulic Winch MOD.101/1/AC
Hydraulic winch front drum type for stringing L.T and M.T overhead lines, assembling hoisting operations as well as underground cable laying.
Specification
| Hydraulic winch | Front Drum Type |
| Braker device | negative |
Notes
max pulling capacity 10 kN
Hydraulic circuit group with negative brake system
Instrumentation Dynamometer for direct reading of pulling value
Control lever
Emergency stop button
Drum/Pulling tool complete with automatic level wind device
rope length up to 800 m / 8 mm diameter or 500 m / 10 mm diameter
Capstan grooves 230 mm diameter- bottom groove
Dynamometric bar with anchoring attachments
Blocking rope device
Adjustable front pickets
Engine 11 HP / 8 kW hand starter
Weight 350 kg
Transport - rigid axle with tyres and bar with front wheel
Lifting can be done using the upper lifting attachment - well balanced.
Hydraulic circuit group with negative brake system
Instrumentation Dynamometer for direct reading of pulling value
Control lever
Emergency stop button
Drum/Pulling tool complete with automatic level wind device
rope length up to 800 m / 8 mm diameter or 500 m / 10 mm diameter
Capstan grooves 230 mm diameter- bottom groove
Dynamometric bar with anchoring attachments
Blocking rope device
Adjustable front pickets
Engine 11 HP / 8 kW hand starter
Weight 350 kg
Transport - rigid axle with tyres and bar with front wheel
Lifting can be done using the upper lifting attachment - well balanced.
Accessories
Towing frame system for road towing up to 80km/h or skid frame for positioning on flat vehicle.Make an Enquiry
For more information on the Hydraulic Winch MOD.101/1/AC, or to make a purchase please contact us
