izumi

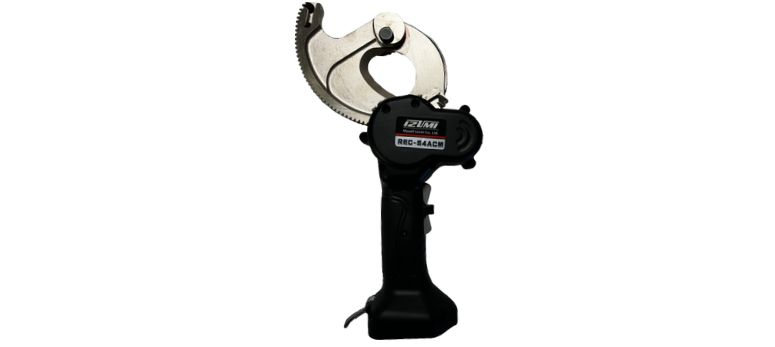

The REC-54AC was specifically designed for cutting the toughest copper and aluminium cables in a limited amount of space. Cuts are clean with a minimal amount of cable distortion. Repetitive ratcheting movement is entirely eliminated. Just a squeeze of the rocker trigger is all it takes to cut your toughest copper cable. It is a heavy duty cable cutter for non-ferrous cables up to 54 mm O.D.. A powerful gear reduction motor pulls a moveable blade through the toughest copper cable. It is equipped with a circuit breaker for overloading protection.
tools tools tools
REC-54AC tools SPECIFICATIONS:
  • MOTOR (VDC): 14.4
  • LENGTH (mm): 105
  • HEIGHT (mm): 410
  • WIDTH (mm): 115
  • WEIGHT (kg less battery): 2.5
tools tools tools
  • Cutting capacity:No
  • of cuts with BP-70E/BP-250R1
  • polyethylene cable 600V-CV325mm2 (31mm OD) 95/180 cuts
  • 600V-CV 150mm2 x 3 (46mm OD) 50/90 cuts
  • 600V-CV 500mm2 (38mm OD) 40/75 cuts
 tools
  • 6KV-CVT500mm2 (45mm OD) 30/60 cuts
  • Multi-core vinyl insulation cable VVR 150mm2 (47mm OD) 3 core 50/90 cuts
  • Soft copper cable IV500 mm2 (35mm OD) 50/90 cuts
  • Hard copper cable 150mm2 (21mm OD) 150/300 cuts.
tools tools tools
ACCESSORIES:
  • Steel carrying case
